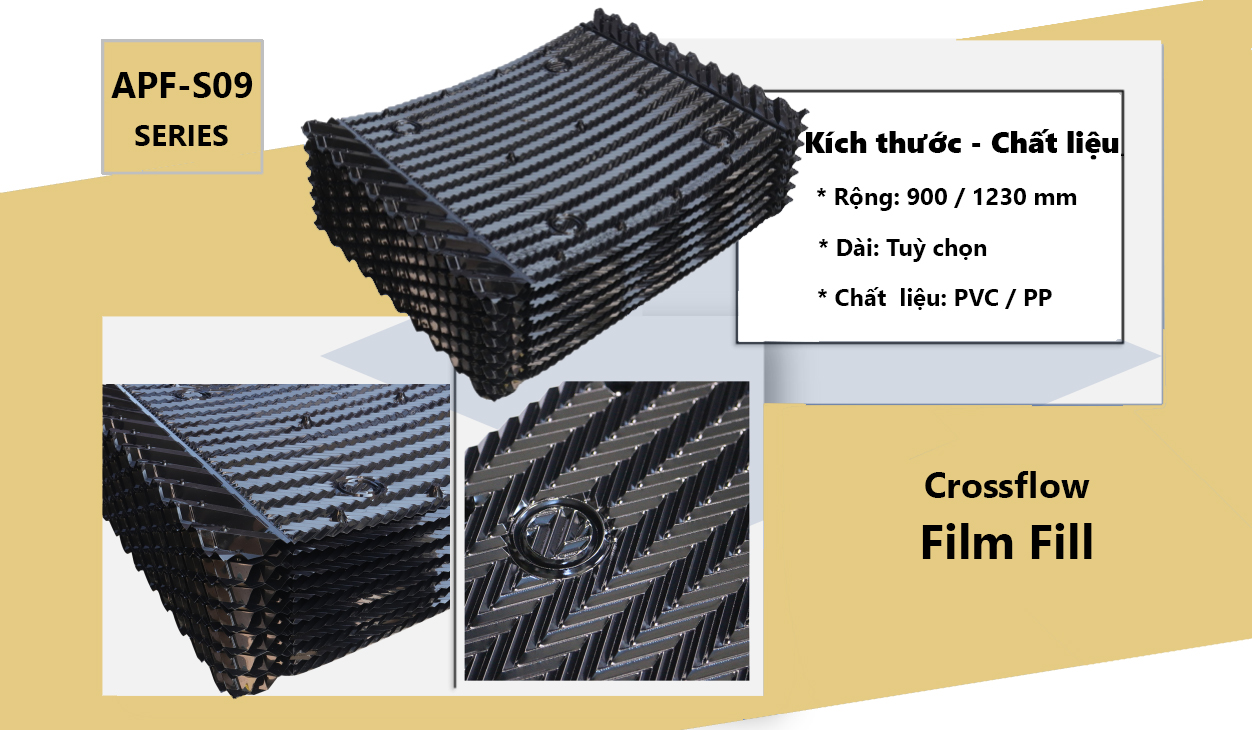

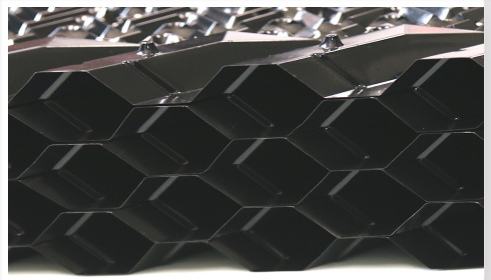

TẤM TẢN NHIỆT ALPHA APF-S09

  • Module Length (Max): 660mm
  • Module Width: 900/1000/1230mm
  • Module Depth: Customized
  • Flute Height: 19 mm
  • Surface Area: 150 m2/m3
  • Sheet Thickness – Before Forming: 0.32 mm
  • Sheet Thickness – After  Forming: 0.28 mm
  • Max application temp (short time) – PVC: 60oC
  • Max operating temp (short time) – High temp: 80oC
